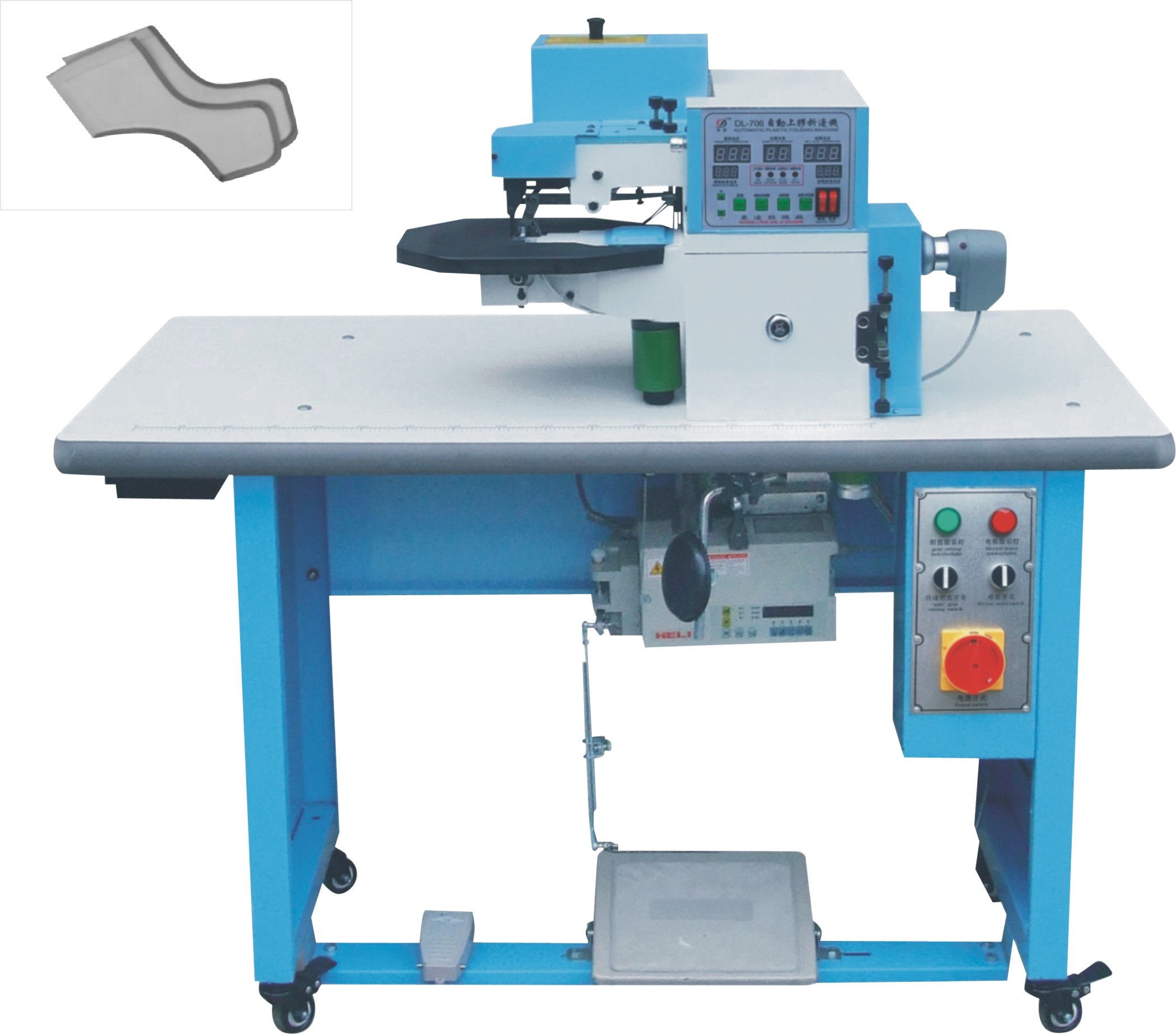

DL-706A全自动上胶折边机

※釆用触摸式控制面版,熔胶温度、出胶流量、出胶温度数字显示, 出胶量无级调节。※先进的翻折机构,调节轻易简便,折边细致平整,宽度均匀,折 边圆滑漂亮。※折边宽度可调整3mm-6.5mm可将补强带一并折入。※具有内弯自动切齿功能,出胶系统双重保护性能优异。※电机停车自动定位,岀胶系统双重保护。※折边效果、工作效率为手工操作5-10倍。

※釆用触摸式控制面版,熔胶温度、出胶流量、出胶温度数字显示, 出胶量无级调节。
※先进的翻折机构,调节轻易简便,折边细致平整,宽度均匀,折 边圆滑漂亮。

※折边宽度可调整3mm-6.5mm可将补强带一并折入。

※具有内弯自动切齿功能,出胶系统双重保护性能优异。

※电机停车自动定位,岀胶系统双重保护。

※折边效果、工作效率为手工操作5-10倍。

LCD touch screen control panel with digital display of volume of gluing, the temperature of both melt glue and outflowing glue; The outflowing of glue can be adjusted infinitely.

Advanced,easy-to-handle folding structure with smooth and even folding.

Folding width adjustable between 3mm-6.5mm and the reinforcing belt can be folded into.

Automatic cutting while incurving; Double protection for gluing system.
 Automatic stopping-position control; Double protection for gluing system.
The efficency of folding is 5-10times faster than manual operation.

型号

Model


DL-706A

电机功率

Motor power


0.4kw

总功率

Total power


0.98kw

电压

Voltage


220V

净重

Net weight


140kg

机器尺寸

Machine size(LxWxH)


1200x550x1280mm
